| Model |

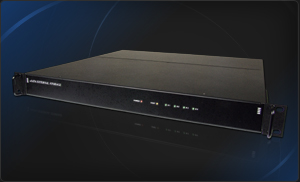

S2100 |
| Host
OS Compatibility |
Linux, Windows 2000
/ XP / 2003 / Vista |
| Host
connection ports |
eSATA 3.0Gbps x 1 |
| Hard
Drive |
3.5'' SATA I or SATA
II HDD (auto negotiation) |
| HDD
Expansion |
Accommodate (up to
1~4) |
| Mode |
Disk-array mode |
| LED |
Power LED x 1, Host
LINK LED x 4, HDD LED x 1 |
| HDD
LED Status |
LED On : Communication
with the Host (Linked) / LED Blink
: Data Activation |
| Operating
Temperature |
0`C to 40`C |
| Operating
Humidity(Relative) |
5% ~ 95% |
| Width(W)
X Depth(D) X Height(H) |
430(W) / 420(D) / 44(H) |
| Weight
(without HDD) |
5.3Kg |
| Output
Powert |
200W |
| AC
Input frequency |
50 ~ 60Hz |
| AC
Input Voltage |
100 ~ 240V |
| AC
Input Current / Voltage |
4A / 2A at 100 ~ 240
VAC (Free Voltage) |
| Power
Factor Correction (PFC) |
90% at full load |
| Power
Consumption (Without HDD) |
7.165W |
| Cooler |
75mm Blower FAN x 1
|
|
|
|
| |
|
|
|
 |
| |
 |
|
